50 MK II
SPECIFICATIONS
LOA | 51'2" |
Beam | 15'5" |
Draft | 6'0" |
LWL | 44'6" |
Ballast | 16,000 lbs |
Displacement | 45,500 lbs |
Sail Area | 1,135 sq. ft. |
STRUCTURE
• Fibreglass roving & unidirectional reinforcements over foam floors with limber holes
• Deck flange bolted & bonded to hull flange
• High densite foam floors in way of mast & engine beds with extra reinforcement
• Cast lead alloy ballast
• Stainless steel keel bolts cast in place with stainless steel nuts & washers
• Keel bedded to sump with epoxy
HULL CONSTRUCTION
• Vinylester resin throughout
• Single piece Core-Cell cored fibreglass molding
• Extra reinforcing as required
• Core phased out in way of all thru-hulls, struts, shaft log, rudder port & centre line
• Molded keel sump with increased laminate
• Awlgrip painted topsides & boot stripe
• Externally fastened 16,000 lb. cast lead ballast
DECK CONSTRUCTION
• Single piece Core-Cell cored fibreglass molding with non-skid pattern on all working surfaces
• Core phased out in way of all deck fittings
• Aluminium backup plates on thru deck hardware
• Two-tone Awlgrip & gelcoat finish
• Awlgrip painted non-skid
• 2 large storage lockers in cockpit
• Oiled teak nosing on house sides & front
COCKPIT
• Large hinged cockpit transom door
• Integral FRP swim platform with swim ladder
• Two sealed & self-draining lockers
• Three sculpted seats for cockpit steering
• Pedestal with angled guard & brake
• Table with folding leaves, grab rails, built-in insulated cooler and waste bin
• Single lever engine controls
• Engine gauges with start & stop switches at both stations
• Teak cockpit grating
WINCHES
• All winches chromed & self-tailing
• 2 primary electric cockpit winches, Lewmar #54
• 2 secondary cockpit winches, Lewmar # 50
• 1 halyard winch, Lewmar #40 on mast
• 2 winch handles, 10" with lock-in & holders
• 12 volt dual direction Lewmar Ocean 2 gypsy & capstan windlass
TRACKS, LEADS, DECK BLOCKS
• All deck hardware Harken or Lewmar
• Deck blocks at spar for halyard reefs & control lines
• 2 double sheave organizers
HATCHES, VENTS, PORTS & RAILS
• All hatches Lewmar anodized aluminium
• 1 fore hatch
• 6 vent hatches
• 8 opening ports with screens
• Oiled teak cap rail
• 2 teak handrails on cabin top
• 2 teak handrails on pilot housetop
• 2 teak dorade vent boxes with 4" stainless steel cowls
• Teak flag pole
• Custom tempered glass-sliding windows in pilothouse with screens
• 3 windshield wipers
• 1 double rail 11/4" stainless steel bow pulpit
• 1 double rail 11/4" stainless steel stern rail with gate
• 12 stainless steel custom stanchions
• 2 gates with braces & upper lifeline gates
• Upper & lower lifelines vinyl coated 7X19 stainless steel with turnbuckles
• 14 stainless steel stanchion bases with aluminium backup plates
• Welded stainless steel bowsprit with twin anchor rollers to hold CQR & Bruce anchors
• Welded double channel stainless steel bow fitting
CLEATS & CHOCKS
• (2) stainless steel forward mooring cleats 12"
• (2) stainless steel midship mooring cleats 12"
• (2) stainless steel aft mooring cleats 12"
• (2) cockpit cleats 10"
• 6 custom chrome bronze chocks set into rail
• Line stoppers as required
SPARS & RIGGING
• Awlgrip aluminium mast
• Masthead rig
• Schafer genoa furling
• Double airfoil shaped spreaders
• Double lower shrouds
• Aluminium mast step
• Leisurefurl boom
• Solid boom vang
• Bobstay
• All rope running rigging, colour coded
• 2 mainsheets
• 2 genoa sheets
• 1 main halyard with shackle
• 2 genoa halyards with swivel snap shackle
• Flag & burgee halyards
• 3 internal halyards
STEERING
• Balanced fibreglass foam filled rudder with 41/2" stainless steel shaft & stiffeners
• Fibreglass steering pedestal
• 44" diameter stainless steel wheel
• 6" Ritchie compass with stainless steel cover
• Cockpit steering system is mechanical , interior steering system is hydraulic
• Stainless steel emergency tiller
• Inside steering station with compass, full engine instrument panel, controls & chart area
ENGINE & DRIVE SYSTEM
• John Deere 135 hp. diesel
• 1 3/4" diameter Aquamet propeller shaft
• 3 blade propeller
• Bow thruster
• FRP shaft log & dripless stuffing box
• GROCO raw water engine strainer
• Two 125 US gallon aluminium fuel tanks with vents
• Dual Racor fuel filters with vacuum gauge
• Engine room sound insulation
• Blower engine room ventilation
• Hinged engine access
• Stainless steel thru transom exhaust
• Coast guard approved exhaust hoses
• Waterlift muffler

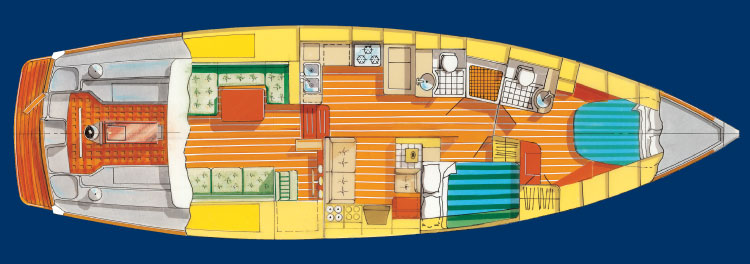

ACCOMMODATIONS
• Standard finish white bulkheads with satin varnish trim & doors
• Main bulkheads Formica covered marine plywood fibreglassed to hull & deck
• All other bulkheads & faces marine grade plywood fibreglassed to hull & deck
• All exposed interior fibreglass in locker interiors covered with teak, cedar or gelcoat
• All interior joiner work & trim satin varnished
• Varnished teak & holly sole
• Removable overhead panels finished in satin white
• Shaped varnished valence hand hold at house side
• 5" foam upholstered cushions in main cabin & 6" foam in staterooms
• All latches, hinges, catches & pulls brass or bright chrome or stainless steel
• Stainless steel sinks in heads
• Separate shower stall
• Chart table with hinged top
• Solid surface counter tops in galley & heads
REFRIGERATION
• 12 volt refrigeration
• Separate freezer & refrigerator with top & front access
• Molded fibreglass box with 4" foam insulation
PLUMBING
• Pressure water with hot & cold faucets in heads & galley, accumulator tank & filters
• 20 gallon water heater with 110 V & engine heat exchanger
• Shower with molded sump, sump pump & telephone type shower head
• Foot pumps for fresh & salt water in galley
• 2 stainless steel water tanks, 100 U.S. gallons each, with level gauges
• Under mounted double stainless steel sink in galley
• Under mounted stainless steel sinks in heads
• Rigid colour coded PVC plumbing & couplers
• 2 heads with 40-gallon holding tank
• Holding tank with overboard discharge pump
• All below water through-hulls fitted with Marelon seacocks
BILGE PUMPS
• 1 #10 Whale "Gusher" manual bilge pump mounted in cockpit
• 3 Rule 2000 electric bilge pumps with auto float switches
PROPANE
• 3 burner Force 10 stainless steel stove with oven
• 2 x 10Ib. aluminium propane tanks with regulator
• Propane storage in vented aft locker
• Solenoid propane shutoff valve with remote switch
• All hoses & connections to Coast Guard requirements
EXTERIOR LIGHTS
• Navigation lights on bow pulpit, stern light on stern push pit
• Steaming, foredeck, anchor & spreader lights on mast
• Light at compass locations
INTERIOR LIGHTS
• Overhead dome lights in staterooms, main cabin, galley, heads, pilothouse & engine space
• Directional reading lights in staterooms, main cabin & pilothouse
• All lights "Cantaloupi" or "Danish Cabin"
ELECTRICAL
• All wiring sized & colour coded to ABYC specs.
• 1 x DS115 starting battery & 3 x 8D gel cell house batteries
• Explosion proof master battery selection switches
• 12V D.C. and 110V A.C. custom distribution panel
• 240 volt 50 amp. Shore power with 50' cord
• 110 volt outlets in galley, head & dinette
• Prosine 2000 watt inverter/charger
• 20amp battery charger for engine and bow thruster batteries
• Chrome overhead lights in galley, dinette, head & forward stowage area
• Chrome swivel reading lights in dinette, nav. area, & aft bunk
• Directional light at chart table
